For businesses and serious growers considering olive oil extraction, the idea of owning a machine for under $10,000 may seem like an attractive entry point. However, achieving high-quality olive oil requires advanced extraction technology that meets food-grade standards. The extraction process is highly technical, demanding specialised equipment to maintain oil integrity and efficiency. This guide will help you understand the essential components of olive oil processing, the investment required, and the best options for entering the market.

The Technology Behind High-Quality Olive Oil Extraction

Many low-cost machines marketed for oil extraction—often priced around $2,000—are screw presses designed for seed and nut oils. These do not meet the requirements for proper olive oil extraction. Producing premium extra virgin olive oil requires specialised machinery that includes:

• Crushing Systems – Designed to handle the hard-pitted structure of olives while maintaining a low processing temperature to preserve oil quality.
• Malaxation Tanks – Controlled mixing at precise temperatures allows natural enzymes to release oil from the olive paste while preventing oxidation.
• Centrifugal Separation – Essential for separating oil, water, and solids efficiently to ensure high yield and purity.


Without these advanced components, it is impossible to produce high-quality olive oil that meets commercial standards.

[%product_781%]

Breaking Down the Olive Oil Extraction Process

1. Crushing: The First Step to Extraction

• Requires high-strength crushers to break down tough olive pits.
• Must operate at low temperatures to preserve the oil’s sensory and nutritional properties.
• Ensures paste consistency for effective malaxation.


2. Malaxation: Controlling Time & Temperature

• A slow, controlled mixing process that activates natural enzymes.
• Requires low-velocity mixing with high torque to prevent excess oxygen exposure.
• Essential for maximizing oil yield and quality.

3. Centrifugal Separation: The Final Stage

• Uses a decanter centrifuge to separate oil from water and solids.
•  A crucial step for achieving purity and optimal extraction efficiency.

Each of these stages demands industrial-grade technology, making low-cost extraction machines impractical for producing high-quality olive oil.

[%product_2569%]

How to Get Started with Olive Oil Extraction

Option 1: Invest in a Professional-Grade Machine – The Frantoino Olive Oil Press

For those serious about maintaining full control over their production, the Frantoino Olive Oil Press is an excellent entry-level option. With a processing capacity of up to 50kg per hour, it delivers professional-quality results in a compact and efficient design. Owning your own machine ensures complete flexibility and control over your olive oil production.

Option 2: Purchase a Pre-Owned Olive Oil Press

f you’re looking for a cost-effective alternative, buying a used machine can provide savings while still allowing you to own your equipment. Though used machines can be harder to source, platforms such as Olive Machinery list available second-hand units.

Option 3: Use a Commercial Olive Processing Service

For those not ready to invest in machinery, a local processing facility provides access to high-grade extraction equipment without the capital investment. To find a processor near you, use The Olive Centre’s Processor Map.

• Oliomio Olive Oil Processing

  Passion and Experience in olive oil and wine systems for high quality processing

  See Clemente MachinesSee Barigelli Machines

  More Oliomio SystemsCompact Systems

  [%product_781_1000_2569%]

  Oliomio Olive Oil Processing



• Barigelli Olive Oil Processing

  Processing machine from 500kgs through to 10Tper hour

  See Clemente MachinesSee Oliomio Machines

  Barigelli RangeWhat's My Requirements

  [%product_799_670_789%]

  Barigelli Olive Oil Processing



• Clemente Olive Oil Processing Machinery

  CLEMENTE … the difference in technological advancement

  See Oliomio Machines

  See Clemente RangeWhat's My Requirements

  [%product_417_161%]

  Clemente Olive Oil Processing Machinery



• Increase Yields With Certified Processing Aids

  Enzymes and Talc for Olive Oil Production to help recover higher yields in early season fruit, high moisture conditions and more

  See Processing Aids

  [%product_208_562_169%]

  Increase Yields With Certified Processing Aids



• Olive and Oil Analysis Machines

  Equipment for testing acidity and other equipment for analysis including NIR Analysers.

  See Oil Analysis Machines

  [%product_3046_148_3138%]

  Olive and Oil Analysis Machines



• Variable Capacity Stainless Steel Tanks

  Vary the level of the oil with a variable capacity tank.  Available in Flat Bottom or Conical Bottom in a wide range of sizes

  See Variable Capacity TanksSee Fixed Capacity Tanks

  [%product_2293_2304%]

  Variable Capacity Stainless Steel Tanks



• Fixed Capacity Tanks from 1,000L

  Stainless Steel Tanks from Italy.  Starting at 1,000L and can be custom made to your requirements.

  See Fixed Capacity Tanks Range

  [%product_2277_5367_5284%]

  Fixed Capacity Tanks from 1,000L



• Fruit Transfer, Washing & Leaf Removal

  Fruit Transfer machinery in Olive Oil Production process.  Hoppers, Belt Elevators & Screw Elevators, Washing & Leaf Removal

  See Clemente Production MachinesSee Barigelli Production MachinesSee Oliomio Production Machines

  See More Fruit Transfer, Washing & Leaf Removal Machines

  [%product_417_799_479%]

  Fruit Transfer, Washing & Leaf Removal



• Crushing & Malaxing Machines

  Precision-engineered machines for crushing and malaxing olives, ensuring smooth processing and superior oil extraction quality.

  See Oliomio Cultivar SystemSee Barigelli AssemblySee Clemente Malaxing

  See More Crushing & Malaxing Machines

  [%product_6784_6792_6407%]

  Crushing & Malaxing Machines



• Decanter, Centrifuge & Separator Units

  High-performance units that separate oil, water, and solids with precision for clean, high-quality olive oil extraction.

  See Oliomio 750 Cultivar SeriesSee Barigelli Automatic Separator

  See More Decanter, Centrifuge & Separator Units

  [%product_2799_5254_789%]

  Decanter, Centrifuge & Separator Units



For decades, engineers have envisioned a compact, efficient, and hygienic machine capable of producing extra virgin olive oil on-site. That dream is now a reality. Modern technology has made it possible for growers to produce their own extra virgin olive oil using a self-contained, economical system that delivers professional-grade results.

This innovation empowers Australian olive growers to add value to their produce - from picking and processing to bottling - using their own equipment. Beyond personal production, it opens the door for entrepreneurs to establish contract processing businesses, pressing olives for others with ease and precision.

The Evolution of Olive Processing

Centrifugal extraction technology was a revolution in the olive oil industry. It replaced older, labour-intensive systems with continuous-flow designs that offered greater hygiene, improved labour efficiency, and higher capacity. These advances quickly made the traditional hydraulic press obsolete.

In the past, Mediterranean growers would haul heavy sacks of freshly picked olives - often already fermenting - to local mills. There, they would join the community in spreading the crushed paste onto mats and watching as hydraulic presses squeezed out the golden liquid. It was a scene rich with tradition, aroma, and anticipation.

Today, the romance of that process has given way to something far more refined. Continuous-flow extraction plants now accept fruit within 48 hours of harvest to prevent overheating and fermentation. Delivered in ventilated plastic crates, the olives enter stainless steel systems that maintain strict hygiene standards, emerging as pure, high-quality oil. The process may lack the old-world spectacle, but it ensures superior product consistency and safety.

A New Chapter for Australian Olive Growers

The rise of accessible, high-performance extraction equipment marks a turning point for the Australian olive industry. Growers can now operate with greater independence, reduce processing costs, and elevate the quality of their oil - all while maintaining the authenticity and freshness that consumers demand.

As The Olive Centre team notes, this innovation was made possible thanks to the enthusiasm and vision of Australian olive growers themselves. Their commitment to excellence has driven this exciting step forward in local production.

Whether you’re looking to press your own olives or launch a boutique processing service, Oliomio offers a practical, proven pathway to success. For more information and a free information booklet, contact The Olive Centre - and take the first step toward making “My Oil” truly your own.

OliomioProcessing Machines

Frantoino BIO olive oil processor by Oliomio

HYDROLAVA OLIVE WASHING UNIT

MORI-TEM FR.250 Olive Crusher

Oliomio 500 Series with Group Malaxing

Olive Belt Elevator by Oliomio

Speedy SV Oil Filling Machine - 2, 4 & 6 Valve - Sottovuoto – Vacuum Filling by MORI TEM

See More:   Oliomio Machinery

Fundamentals of Olive Oil Extraction and Quality

Modern extra virgin olive oil (EVOO) production relies on continuous centrifugal extraction, which has largely replaced traditional presses. In a continuous system, olives are cleaned, crushed into paste, and then malaxed (gently mixed) before a horizontal decanter centrifuge separates oil from water and solids. This process is far more efficient and hygienic than the old press-and-mat method, which is now considered obsolete. Key quality factors include processing fruit quickly to avoid fermentation, maintaining low temperatures during malaxation, and minimising exposure to oxygen. For example, transporting olives in ventilated crates and crushing/milling within 24-48 hours of harvest helps prevent heat buildup and unwanted fermentation that could spoil flavour. Cleaning and de-leafing the fruit before crushing is also critical - removing leaves, dirt, and debris ensures no off-flavours or contaminants make it into the oil. Mordern mills typically incorporate washing and leaf-removal steps for this reason.

Temperature control is paramount during extraction. EVOO is generally produced under “cold-press” conditions, meaning malaxation is kept around ≤27 °C to preserve aromatic compounds and polyphenols. Longer malaxation times or higher temperatures can increase yield but will reduce polyphenol content and flavour freshness. Recent research confirms that malaxation time and temperature must be optimised per cultivar e.g., one study found that extending malaxation from 15 to 90 minutes caused polyphenols to drop by up to 70%. In Australian groves, where harvest season temperatures can be high, processors often monitor paste temperature closely and may use heat exchangers or vacuum conditions to control it. Shorter malaxation (20-40 minutes) at moderate temperatures is commonly employed to balance oil yield with quality retention. Equally important is timing from harvest - olives allowed to sit too long (especially in warm conditions) will start fermenting. Using shallow, well-ventilated bins and milling within a day of picking is recommended to keep olives cool and intact. Big Horn Olive Oil in USA, for instance, emphasises rapid processing: they cold-press olives within 2 hours of harvest to “lock in freshness and antioxidants,” drastically reducing oxidation time in between. Such practices help Australian producers achieve long shelf life (18 - 24 months) and vibrant flavour in their EVOO whereas Cockatoo Grove has a Midnight EVOO where they pick and press in the cool of the night.

Harvest Timing and Olive Oil Quality ~ Australian Insight

Ongoing research in Australia has highlighted how harvest timing and orchard factors influence oil quality. As olives mature on the tree, oil yield rises, but phenolic compounds (antioxidants) tend to drop. In field trials across New South Wales and Victoria, early-harvest olives produced oils with higher polyphenol content and longer shelf stability, whereas late-picked fruit gave more mellow oils with lower antioxidant levels. Free fatty acidity and peroxide (rancidity indicators) remained low until fruit became overripe, but antioxidant-rich components like tocopherols and polyphenols decreased as the fruit matured, leading to reduced oxidative stability in late-season oils. Australian producers must therefore balance quantity vs quality: an early pick yields robust, pungent oils rich in healthful polyphenols, while a later pick yields more volume with milder taste. The table below (adapted from industry data) illustrates this trade-off:

Other local research has examined irrigation effects on oil quality. Water-stressed olive trees (common in Australian summers) often produce smaller, more bitter fruit with higher polyphenol content, whereas heavily irrigated trees yield plumper olives with diluted phenolics but higher total oil output. For example, a study found that deficit-irrigated trees had the highest polyphenol levels (and earlier fruit ripening) in dry years, while fully irrigated trees gave greater oil yields at the cost of some phenolic concentration. These findings underscore that post-harvest decisions (when to pick, how to handle fruit before milling/crushing) are just as crucial as the milling technology itself. Cutting-edge extraction equipment can maximise quality potential, but growers must still deliver quality olives to the mill and process them with urgency to produce premium Australian EVOO.

• Two-Phase Centrifugation: Oliomio decanters operate without added dilution water, separating oil and wet pomace directly. This “2-phase” process leaves the oil richer in polyphenols (since no wash-water strips them out) and avoids producing large volumes of wastewater. As one Queensland producer noted, using a two-phase Oliomio mill “leaves the oil in its natural state” with all its aroma and antioxidants. In contrast, older three-phase systems required water addition and hence washed out some flavour and nutrients.
• Integrated Continuous Flow: Unlike traditional presses or early monoblock mills, Oliomio machines run a continuous flow process. Olives go in one end, and oil (plus separated pomace) comes out the other, with no manual intermediate handling. Even the smaller models use augers or pumps to move paste through the crusher → malaxer → decanter stages without stopping. This boosts throughput and prevents paste from sitting exposed to air. (Entry-level models like the older Spremoliva C30 were discontinuous, requiring batch-wise malaxing, but the latest Oliomio range is fully continuous for capacities ≥50 kg/hour .) Continuous design also improves labour efficiency and throughput; operators can just keep feeding olives and collect oil, rather than pressing batch by batch.
• Compact, Hygienic Construction: Oliomio units are built entirely from food-grade stainless steel (AISI 304), with sanitary design principles to meet strict hygiene standards. There are no porous bags or mats as in old presses - all surfaces contacting the olive paste or oil are smooth stainless steel, easy to wash and disinfect. Many models include CIP (clean-in-place) features like built-in washing jets for the malaxer and decanter drum. Automated washing cycles allow thorough cleanup between batches or at day’s end, which is vital for preventing residue buildup and off-flavours. This focus on cleanliness is a major upgrade from traditional mills, where remnants in mats or presses could turn rancid.

• Automation & Control: Despite their small size, Oliomio machines are equipped with modern control systems. Standard features across the range include inverter-driven motors (variable frequency drives) to adjust the crusher speed and decanter bowl speed. By tuning these speeds, an operator can optimise extraction for different olive varieties or ripeness levels. A flow meter for precise water dosing (used sparingly, e.g., to flush the decanter or facilitate paste flow in difficult batches) is also built in. Malaxer temperature is thermostatically controlled; midrange and larger Oliomio models have digital temperature readouts and automatic heating elements to maintain the set malaxation temperature. Safety and ease-of-use are considered as well - control panels consolidate the start/stop and adjustment functions, and protections like emergency stops and motor overload controls are provided. Overall, these systems bring a level of automation once seen only in large industrial mills down to the farm scale.

• Energy Efficiency: By using inverter motors and a compact footprint, Oliomio mills are relatively energy-efficient for their output. For instance, the standard Oliomio 80 model runs on a single-phase 220V supply, drawing ~3 kW, meaning it can be used without special electrical infrastructure. Even the 100 kg/hr “Gold” model, despite its higher capacity and automatic features, uses only about a 4 kW motor and can be configured for single or three-phase power. This efficient power usage is partly due to the elimination of heavy hydraulic presses and due to optimised decanter designs that don’t require excessive dilution water or prolonged processing. The continuous process also avoids idle time between batches, making the best use of energy to process a given tonnage of olives.

Range of Oliomio Equipment - Models and Features

MORI-TEM offers a spectrum of Oliomio mills to suit different scales, from artisanal boutique producers up to small commercial cooperatives. All share the principles above, but with varying throughputs and degrees of automation. Below is an overview of the current Oliomio lineup and its characteristics:

• Frantoino Bio - A compact entry-level continuous mill designed for boutique production. With a throughput of roughly 50 - 60   kg of olives per hour (up to ~0.4   ton per 8-hour day), the Frantoino Bio enables a small grove to produce its own oil efficiently. It is a self-contained unit performing crushing, malaxing, and separation in one chassis, and runs on single-phase power (≈3 kW) for easy setup. Despite its small size, it incorporates a knife crusher, a horizontal malaxer, and an innovative 2-phase decanter centrifuge. An inverter control allows adjustment of the crusher and decanter speeds to adapt to fruit conditions. The Frantoino Bio also features an adjustable nozzle system on the decanter, which lets the operator fine-tune the oil/pomace separation for olives of different water content. Standard fittings include a paste feeding screw with variable speed and a malaxer heating jacket (basic thermostat control) to facilitate cold extraction. This model is ideal for artisanal olive farms, niche producers, or research labs - anyone processing on the order of a few hundred kilos per day - who wants a professional-grade yet portable mill. Built entirely in stainless steel, the Frantoino Bio emphasises hygiene and simplicity, requiring only a single operator. (Optional add-ons: a mini olive washer/de-leafer and a waste paste pump can be attached to make a complete milling line.)
• Oliomio 80 Plus - A step up in capacity, the Oliomio 80 can process 70 - 80 kg/hour and is recommended for about 0.6 tons of olives per day. This model includes more advanced controls: it has a horizontal continuous malaxer with temperature regulation and a digital display on the control panel. The crusher is of the knife type, and the decanter is a modern two-phase design similar to Frantoino’s, but larger. Like all Oliomios, it features an inverter to fine-tune decanter and crusher RPM, a flowmeter for any process water, and an automatic drum-washing system to ease cleaning. The Oliomio 80 is often the choice for small farms and estates in Australia that are expanding production - it’s still operable on single-phase power (3 kW) but offers fully continuous processing with better throughput. Notably, the malaxer on the 80 Plus is insulated and has a built-in heater and temperature sensor/visualizer, allowing true control of paste conditions. Growers processing on the order of 5-10 tons per harvest find that this model hits a sweet spot in being compact yet sufficiently automated. (Typically paired with the DLE “Baby” washer/leaf remover and a small plate filter unit for polishing the oil .) Quality-wise, the Oliomio 80 is engineered to let producers crush olives immediately after picking, yielding high-quality EVOO with minimal oxidation.
• Oliomio Gold - Introduced as “Oliomio’s newest” small-scale extractor, the Gold model pushes capacity to 90-100 kg/hour while adding full automation features. It is designed for a daily throughput of ~700-800 kg (0.7-0.8 ton) of olives in an 8-hour shift. The Oliomio Gold includes all features of the 80 Plus and more: for example, it has completely automatic self-cleaning of the machine via an integrated washing circuit. At the end of processing (or between batches), the operator can activate the cleaning cycle to flush the malaxer and decanter, which reduces labour and ensures no cross-contamination between different batches or varieties. Additionally, the Gold has dual motor options - it can be ordered in single-phase 4 kW or three-phase 4 kW versions, giving flexibility to farms with industrial power available. This model also features a second screw conveyor with variable speed that feeds olives into the crusher automatically (improving consistency of throughput), as well as an included pomace (waste) discharge pump (PSS.1) to eject the wet pomace without manual shovelling. Optional accessories for the Gold include an olive destoning kit and an inverter to adjust the malaxer’s internal stirring speed for even finer control. In practice, the Gold has become popular with estate producers and regional mills in Australia who value its “press-and-forget” automation - one can continuously feed in fruit and the machine manages the rest (crush, mix, extract, self-clean), producing a clean, high-quality oil with minimal staffing. Its throughput (~100 kg/h) often matches the picking rate of a small mechanical harvester, making it a great fit for mid-sized groves.

• Oliomio Profy 200 - The Profy is a higher-capacity monobloc mill, named for its “professional” capabilities. With 150-200   kg/hour throughput, it serves small commercial operations or cooperative processing facilities. The Oliomio Profy is essentially a compact two-malm (two malaxer) plant in one frame. It consists of a heavy-duty FR_250 crusher (which can be configured as knife or hammer crushing), a dual-stage malaxing system (paste flows from Malaxer #1 to Malaxer #2 automatically), and a DMT_2 two-phase decanter. This configuration allows semi-continuous operation even at higher volumes: while one malaxer is being filled with fresh paste, the other is feeding the decanter, thus optimising utilisation. The Profy’s design pays special attention to oil quality: for example, it notes that the difference in paste temperature between crusher inlet and outlet should not exceed 1-2 °C - an indicator of gentle handling with minimal friction heat. The malaxers are completely enclosed (with vapour locks) to prevent excessive oxidation of the olive paste. The decanter is a high-efficiency horizontal centrifuge with a specialised 2.0 auger, designed to produce a cleaner oil without temperature increase during extraction. Thanks to the integrated waste pump, even at this scale, the system cleanly expels pomace. The Profy 200 requires three-phase power (about 9 kW installed) and features options like a crusher speed inverter and an advanced temperature controller for the malaxer. In Australia, an Oliomio Profy (≈150 kg/hr) is considered an “ideal capacity” for collaborative mills - it’s enough to allow multiple small growers to process their olives locally without having to invest in a very large plant. Growers can retain control over their product and timing, while the machine’s compact footprint and ease of use lower the barriers to entry for professional olive oil production. As evidence of its success, hundreds of Australian producers have adopted Oliomio systems (many of them in the 80-200 kg/hr range), enabling on-farm processing and contract milling services that deliver award-winning EVOO.


Frantoino BIO olive oil processor by Oliomio
Complete extraction unit for crushing, malaxing, and separation
FA.Frantoino.BIO
More Info

Oliomio 80 | Olive Oil Processor Press Machine
Capacity up to 80kgs/hr
FA.Oliomio.80PlusPS
More Info

Oliomio Profy 200 | Self-contained Olive Oil Processing Machine
Compact, stainless-steel olive oil extraction system
FA.Oliomio.Profy
More Info

Oliomo 500 Cultivar olive oil extraction system
FA.Oliomio.500.Cultivar
More Info

To summarise the small-to-medium Oliomio models discussed above, the table below compares their capacities and key features:

Table: Comparison of select Oliomio continuous mill models (MORI-TEM). All feature two-phase extraction, stainless steel construction, and integrated crushers and decanters; higher models add more automation and capacity. Note how the traditional press is absent - even the smallest Oliomio brings modern centrifugal extraction to the farm, highlighting the leap in technology from the old press or “monoblocco” mills of past decades.

Medium-Scale Modular Systems: Sintesi, Forma, Cultivar, TecnoTEM

For producers scaling beyond the monobloc units, MORI-TEM offers modular olive mill installations that handle larger throughputs while prioritising quality. These systems - marketed under names like Sintesi, Forma, Cultivar, and TecnoTEM Oliomio Sintesi Series - break the extraction process into separate machines (e.g., independent crusher, malaxer group(s), decanter, separator) designed to work in harmony. They introduce features like multiple malaxers for higher throughput, vacuum malaxation technology, and advanced control systems. Importantly, they still operate on the continuous two-phase principle and embody the same hygiene and automation ethos as the smaller Oliomio range. Here’s an overview of each series:

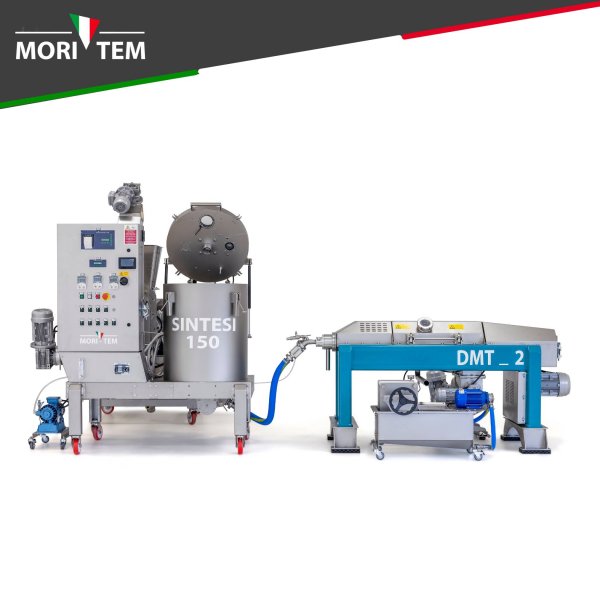

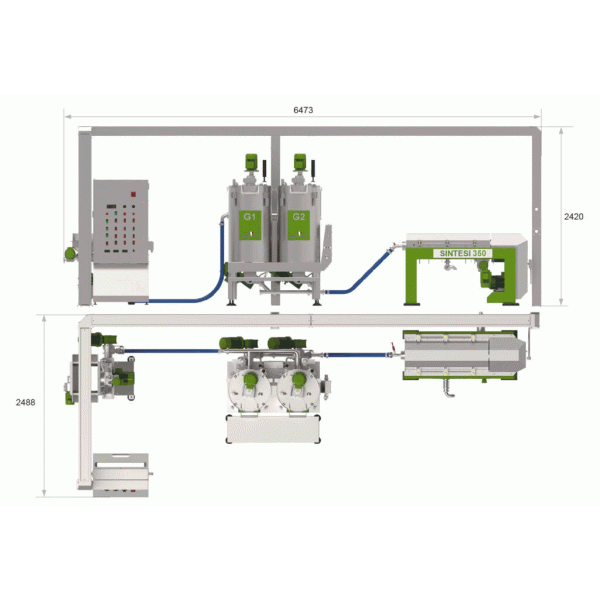

• Oliomio Sintesi Series: Sintesi (Italian for “synthesis”) plants are engineered for small-to-medium facilities that demand top oil quality, including high polyphenol content. With nominal processing speeds of 140-500 kg/hour, Sintesi fills the gap between compact mills and large industrial ones. A hallmark of Sintesi is its vacuum malaxing system: it uses vertical, closed malaxers under slight vacuum to malax the olive paste with minimal oxygen exposure. This gentle handling helps retain aroma compounds and prevent phenolic losses due to oxidation. The temperature control is uniform across all malaxers (“global”) and can be precisely managed to keep conditions cold. The system can be run in continuous mode or in batches, providing flexibility for producers who might want to separate distinct varietals or ripeness batches. Structurally, the crusher in Sintesi lines is separate from the malaxer (often a standalone mill with its own inverter speed control) and feeds paste via an electric valve and pump. Each malaxing vessel has an outlet with a dedicated elliptical piston pump to transfer paste to the decanter smoothly and consistently. The decanter itself is a horizontal twophase unit similar in concept to the Oliomio small mills but scaled up; it features MORI-TEM’s special 2.0 auger design that maximises oil yield without needing dilution water and avoids any paste temperature increase during extraction. Cleaning is made easy - Sintesi malaxers have fully opening lids giving access to all internal surfaces, and optional automatic washing systems are available to rinse the equipment between runs. In summary, Sintesi marries state-of-the-art quality control with moderate capacity. It’s targeted at operations like boutique olive mills processing a few tonnes per day, high-end producers focusing on nutraceutical-grade EVOO, or collaborative ventures where multiple growers share a facility but want to keep each batch’s quality optimal. By dramatically reducing oxidation, Sintesi can produce oils with exceptionally high sensory and healthy qualities - effectively “super premium” oils - even at a farm scale.
• Forma Series: The Forma line represents MORI-TEM’s solution for standard medium-sized olive oil factories, with production throughput ranging roughly from 180 to 1000 kg/hour depending on configuration. “Forma” systems are modular and can be configured in 2, 3, or 4 malaxer setups (often denoted 2GL, 3GL, 4GL for the number of malaxing units). Unlike Sintesi, Forma malaxers are generally horizontal (open-top trough style) but can still be closed during operation to avoid air contact. The design allows batch separation in a continuous process: on a 2GL (two-malaxer) Forma, the crusher is mounted atop the malaxers and can direct paste into Malaxer #1 or #2 selectively. This means two different olive batches can be handled in staggered timing - highly useful if a mill processes different varieties or ripeness lots in one day. In the 3GL and 4GL versions, the crusher is entirely separate (feeding via a tube), and paste allocation to each malaxer is automated by valves. An underlying philosophy of Forma is optimising flavour formation and extraction efficiency. For example, engineers highlight the management of oxygen at the crusher inlet: introducing a controlled small amount of air at crushing can activate the lipoxygenase pathway in olive paste, which creates desirable aromatic compounds (the “green” fruity aromas). However, it must be balanced - excess oxygen would oxidise those aromas later. Forma crushers thus allow fine-tuning of oxygen ingress to strike this balance. Similarly, the thermal delta between incoming olive paste and outgoing paste from the crusher is kept minimal (around 1-2 °C difference) to avoid heating the paste during the initial grind. Once in the malaxers, paste is kept in closed conditions with jackets to control temperature effectively. On 3GL/4GL models, paste transfer from malaxers to the decanter is managed by synchronised pumps and automated valves, maintaining a continuous feed without manual intervention. The decanter in Forma systems is similar to that in Sintesi - a high-yield, 2-phase horizontal centrifuge with a special auger that requires no added water and ensures no additional heat is generated as the oil is extracted. Cleaning and maintenance are facilitated by large openings (the entire top cover of each malaxer can flip open), eliminating dead spots where paste could accumulate. The Forma line is well-suited to cooperative mills, family operations scaling up, or new olive ventures aiming for ~0.5 to 5 tons/hour capacity with modularity. A producer can start with a 2-malaxer setup and potentially expand to more malaxers as volumes grow. With Forma, every piece of the process is under control (crush, oxygen, temp, malax, extract), which is why MORI-TEM touts that it “allows extraction of a great product” when coupled with their support and the producer’s own best practices.
• Cultivar Series: The Cultivar series is built for high-capacity farm or estate production, in the range of 650 to 4000 kg/hour throughput. These are essentially small industrial plants optimised for single-estate operation with low oxidation impact. They share many design elements with Sintesi (in fact, “Sintesi” and “Cultivar” both employ vacuum malaxation), but are scaled to much larger throughputs. In Cultivar systems, the crusher is separate and includes an inverter control to adjust crushing speed/ intensity. As with Forma, there is emphasis on controlling oxygen at the crusher for flavour and keeping the paste temperature rise negligible. However, malaxation in Cultivar is done in closed vertical malaxers under a light vacuum - similar to Sintesi, but these malaxers are bigger and oriented vertically to facilitate the handling of large paste volumes. The slight vacuum environment (a mild negative pressure) during malaxation further reduces oxidation, which is especially beneficial when malaxing for longer times or with larger batches. Temperature control is applied globally across all malaxers to keep conditions uniform. Paste is pumped in and out of the malaxers automatically via valves and piston pumps, as in other series. Cultivar’s horizontal decanter is designed for maximal oil recovery with high quality, again using the 2.0 auger to avoid dilution water and prevent any thermal increase. Given the large flow rates, the Cultivar decanter must handle a heavy throughput while still achieving a clean separation; Mori-TEM’s design focuses on maintaining oil quality even at scale (e.g., by effectively removing fruit water and solids without needing a polishing separator for the oil). Cleaning these large systems is addressed through fully opening lids (like Forma) and optional automatic washing systems to reduce downtime between production runs. Cultivar installations are often custom-tailored to an estate’s needs - for example, an Australian grove with a few thousand tons of olives might choose a Cultivar 1000 (around 1   ton/hr) line to process their entire crop on-site at peak ripeness, ensuring ultimate freshness. These systems let big producers avoid transporting olives long distances to external mills (which can cause fruit damage and delays). With Cultivar, even large Australian olive farms can implement immediate, oxidation-minimised processing “at the tree,” delivering oil that competes with the best artisanal products. It represents a farm-scale adoption of the same principles of quality: controlled oxygen, gentle handling, and sanitation on a grander throughput. Notably, despite their size, Cultivar systems still pride themselves on producing a “good quality product” with the support of Mori-TEM’s expertise - essentially debunking the notion that large-scale mills must sacrifice quality for quantity.
• TecnoTEM Series: TecnoTEM is the high-end line intended for customised continuous processes and third-party manufacturers (hence “techno”), spanning roughly 400 to 4000 kg/ hour capacities. These plants are built to be modular and flexible for special requirements – for instance, an olive mill that also wants to experiment with enzyme dosing, or a facility that processes both olives and other fruits might opt for TecnoTEM for its configurability. In practice, a TecnoTEM installation might look similar to a Forma (with horizontal malaxers) but with additional bells and whistles or integration into a larger production line. The design priorities include the same fundamentals: minimise oxygen, minimise heat, maximise extraction efficiency. The TecnoTEM malaxers are closed (though not necessarily vacuum) and temperature-controlled. Each malaxer has an automatic valve-fed inlet and an elliptical piston pump on the outlet to send paste forward, ensuring consistent flow to the decanter. Full opening lids allow thorough cleaning just as in other series. The decanter uses the two-phase system with the special auger design, yielding a clean oil without added water and with no temperature rise during separation. Essentially, TecnoTEM takes the Forma concept and opens it up to client-specific configurations - whether that’s integrating multiple crushing lines, adding intermediate storage/malaxer buffering, or hooking up to an external clarifier or filtering system as part of a continuous pipeline. It’s often chosen by contract milling operations or large enterprises that require a robust, continuous mill that can run 24/7 in peak season and handle different processing modes (continuous for large batches, but perhaps also able to do discontinuous for specialty lots). The emphasis on “third-party manufacturing” suggests these systems are also built with reliability and standardisation in mind - a custom mill can be assembled from proven MORI-TEM components to meet the exact needs of the producer. For example, an Australian regional olive press centre that processes olives for dozens of growers might use a TecnoTEM line to accommodate varying daily volumes and ensure each client’s olives are processed optimally. Despite the scale and bespoke nature, Mori-TEM underscores that even TecnoTEM equipment “allows extraction of a great product” when operated with their guidance. In other words, technical customisation does not come at the expense of oil quality - all the core design choices (hygiene, controlled mixing, rapid processing) remain oriented toward producing high-grade EVOO.

Comparing Modern Systems to Traditional Presses and Older Mills

It is instructive to contrast the above Oliomio technologies with the outdated systems they have superseded - namely, the classic hydraulic press and early-generation farm mills (older “monoblocchi” units). Traditional olive presses involved grinding olives (often with stone mills) into paste, spreading that paste onto fibre mats, stacking them, and then applying tons of pressure in a press to squeeze out the oil/water mixture. This method, while romantic, had numerous drawbacks: it was labour-intensive and slow, exposed the olive paste to air for prolonged times, and was hard to keep clean. The mats and press equipment could harbour yeasts or moulds and were difficult to sanitise thoroughly. It was not uncommon for olives to begin fermenting in the interim between harvest and pressing - indeed, historical accounts describe farmers bringing sacks of olives to the mill that were “often already fermenting” by the time they were pressed. The result was oil of inconsistent quality and stability. Continuous centrifuge systems like Oliomio eliminated these problems by moving to an enclosed, stainless-steel process where olives are milled almost immediately after picking, drastically cutting the chance for fermentation or oxidation. The greater hygiene and speed of continuous extraction have improved average oil quality and made defects from processing (such as fusty or musty flavours from fermentation) much rarer in modern operations. As a report on introducing Oliomio technology in Australia noted, “centrifugal extraction…replaced older, labour-intensive systems with continuous-flow designs”, offering better hygiene, efficiency, and capacity - effectively rendering the old press method obsolete in quality-oriented production.

Early small-scale continuous mills (from the 1990s-2000s) were a huge step up from presses, but they lacked some refinements of today’s Oliomio models. For example, many older farm mills did not have automated temperature control for malaxation, nor continuous malaxer flow. The very first “Oliomio” monoblock (created by Tuscan innovator Giorgio Mori) was revolutionary for being compact and continuous, but subsequent generations have added further improvements. A comparison of features illustrates this evolution: the older Spremoliva 30 could only malax in batch mode (no simultaneous crushing while decanting) and had no heating system or temperature display on the malaxer. By contrast, an Oliomio 80 or Gold today has fully continuous malaxing with automated temperature control and readout. Earlier mills often used fixed-speed motors and one-size-fits-all settings, whereas new systems employ inverter drives and adjustable nozzles to accommodate different olive conditions (small, watery olives vs. large, fleshy ones, etc.). Another big leap is in automation: tasks like pomace removal and equipment washing, once manual, are now handled by integrated pumps and wash cycles in machines like the Gold and Profy. This not only reduces labour but also ensures more consistent cleanliness batch after batch. In terms of energy and water usage, modern two-phase decanters are also more sustainable - they eliminate the need for large volumes of dilution water required by traditional three-phase decanters (saving water and the energy to heat it) and produce a simpler waste stream (wet pomace) that can be repurposed or composted more easily than press liquor or black water from old systems.

Crucially, oil quality has improved with each technical advance. Traditional pressing often left higher sediment and water in the oil, necessitating longer settling or filtration and risking quicker oxidation. Continuous centrifugation yields cleaner oil immediately, and the lack of air contact preserves freshness. Chemical measures like peroxide value and UV stability are typically superior in oil produced by a modern continuous mill versus an old press, when starting with the same fruit. The ability to crush and extract within hours of harvest, at controlled temperatures, means free fatty acid levels stay extremely low and the positive flavour notes are maximised. Australian producers who have adopted the latest Oliomio systems consistently report better quality and consistency in their oils, even when processing smaller batches. As an example, Spring Gully Olives in Queensland upgraded to a two-phase Oliomio (150 kg/hr) and found it ideal: it allowed them to process their own crop and offer custom processing to neighbouring groves, all while producing oil that needed no further refining - “the 150 kg per hour Oliomio is an ideal capacity which allows small growers to have their own oil processed…and it leaves the oil in its natural state”. This kind of feedback underlines how modern machinery empowers even small-scale growers to achieve high extraction efficiency and premium quality that rivals the big producers.

In summary, the latest Mori-TEM Oliomio systems represent a convergence of advanced engineering and practical on-farm olive oil production. They enable professional, hygienic, and quality-focused extraction at scales from a few dozen kilograms up to several tonnes per hour. By carefully controlling each step - from fruit cleaning and crushing with minimal oxidation, to malaxation under controlled atmosphere, to efficient two-phase centrifuge separation - these machines ensure that the oil produced reflects the true potential of the olives. Australian growers using Oliomio equipment benefit not only from improved oil quality and shelf life, but also from greater independence and flexibility: they can harvest at optimal times and process immediately, rather than rushing to a distant community mill or risking fruit spoilage. The result is fresher, more flavorful extra virgin olive oil that meets the high standards of a sophisticated global market. And with the range of Oliomio models and configurations now available, producers can choose a setup tailored to their grove’s size and business model - whether it’s a one-person boutique press or a regional processing hub servicing multiple farms. The technology has truly opened a new chapter for the industry, one where tradition and innovation blend to produce the finest EVOO. Each bottle of oil pressed with these modern systems tells the story of careful harvest timing, immediate processing, and gentle extraction - a story that resonates strongly with Australia’s drive for quality and the world’s appreciation of premium extra virgin olive oil.
