Galaxy Series Olive Pomace Separators (Clemente)
Olive Pomace Processing – Galaxy 2 Clemente
Compact two- and three-phase olive pomace separator for efficient recovery and processing.
The Galaxy 2 Clemente is a high-performance olive pomace separator built from AISI 304 stainless steel, designed for efficient operation in both two-phase and three-phase olive oil extraction systems.
With a processing capacity of 3 t/h (three-phase) and 4 t/h (two-phase), this machine delivers precision separation between solid and liquid components, reducing pomace moisture to around 55% in three-phase mode.
It operates with low energy consumption, ensuring reliable performance for small to mid-scale olive mills. Compact and durable, it can function autonomously or as part of a continuous line, achieving 10–20% efficiency depending on pomace quality.
Model
GXY-2
Processing Capacity
3 t/h (3-phase) | 4 t/h (2-phase)
Electric Motor
24 kW
Material
AISI 304 Stainless Steel
Efficiency
10–20% (variable by pomace quality)
Dimensions (L × W × H)
2420 × 990 × 1850 mm
Weight
1000 kg
Voltage / Frequency
400 V / 50 Hz
Power Line
3F + T
Why Choose Galaxy 2:
Ideal for small to mid-scale mills requiring high-quality separation.
Compact structure fits tight production layouts.
Flexible operation for two-phase and three-phase systems.
Energy-efficient and easy to maintain.
Olive Pomace Processing – Galaxy 3 Clemente
High-throughput olive pomace separator for medium-scale production lines.
The Galaxy 3 Clemente is an advanced olive pomace separator engineered to handle larger processing volumes efficiently. Capable of 8 t/h (three-phase) and 12 t/h (two-phase), it delivers precision separation of solids and liquids while maintaining consistent throughput.
The system adjusts pomace moisture from 80–90% (two-phase) to 55% (three-phase), optimising waste management and oil recovery rates. Built entirely from AISI 304 stainless steel, it ensures durability, hygiene, and longevity under demanding industrial conditions.
Key Specifications
Specification
Value
Model
GXY-3
Processing Capacity
8 t/h (3-phase) | 12 t/h (2-phase)
Electric Motor
58 kW
Material
AISI 304 Stainless Steel
Efficiency
10–20% (depending on olive quality)
Dimensions (L × W × H)
3000 × 1400 × 2450 mm
Weight
1800 kg
Voltage / Frequency
400 V / 50 Hz
Power Line
3F + T
Why Choose Galaxy 3:
Medium-capacity unit for continuous olive oil extraction lines.
Robust and quiet operation with minimal maintenance.
Adjustable for varying pomace moisture content.
Provides superior energy efficiency and long service life.

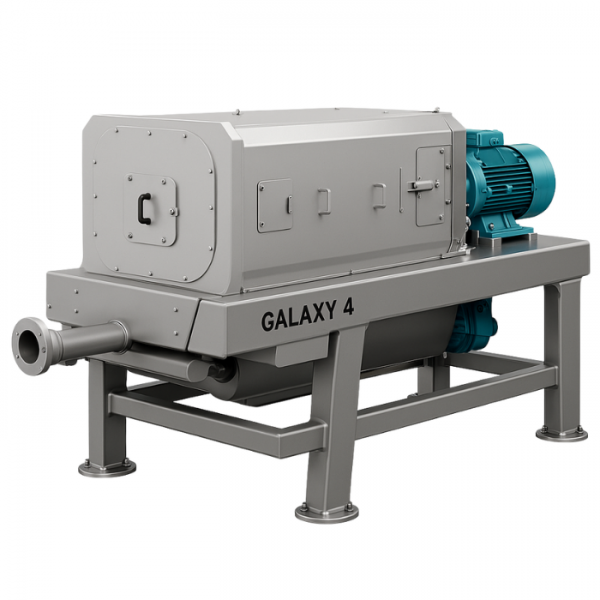

Olive Pomace Processing – Galaxy 4 Clemente
Industrial-grade high-capacity olive pomace separator for continuous processing.
The Galaxy 4 Clemente represents the peak of olive pomace processing performance.
With a throughput of 18–20 t/h, it efficiently separates liquid pomace from olive pits with precision, powered by a 58 kW motor and automated flow control for stable operation.
This model integrates an automatic washing system and pneumatic scraper for continuous drum cleaning. Constructed from AISI 304 stainless steel, it offers exceptional durability and low maintenance for large olive oil production facilities.
Key Specifications
Specification
Value
Model
GXY-4
Processing Capacity
18–20 t/h
Electric Motor
58 kW
Material
AISI 304 Stainless Steel
Features
Automatic washing system, pneumatic scraper, electrical flow control
Dimensions (L × W × H)
3000 × 1800 × 2250 mm
Weight
1800 kg
Voltage / Frequency
400 V / 50 Hz
Power Line
3F + T
Why Choose Galaxy 4:
Heavy-duty solution for large-scale olive mills.
Incorporates automatic cleaning and energy regulation systems.
Compact yet powerful with high output efficiency.
Ensures consistent, continuous pomace separation for industrial plants.
Frequently Asked Questions
The Galaxy 2, 3, and 4 models are part of Clemente’s progressive pomace processing range, each tailored for different mill capacities and production requirements.
Galaxy 2 is ideal for small to medium-sized mills, with a throughput of 3 t/h (three-phase) or 4 t/h (two-phase). Its compact footprint makes it easy to integrate into existing lines or small production areas.
Galaxy 3 serves medium-scale continuous lines, offering 8–12 t/h throughput and improved efficiency through larger drum capacity and higher motor power.
Galaxy 4 is a heavy-duty industrial system, handling 18–20 t/h with automated washing and pneumatic scraper systems for uninterrupted operation.
Each model uses the same AISI 304 stainless-steel construction and energy-efficient design but scales up in motor power, capacity, and automation features according to production needs.
The Galaxy system employs centrifugal separation technology to extract liquid from olive pomace. During operation, the machine’s internal drum spins at high velocity, forcing solid and liquid fractions to separate by density. In three-phase systems, moisture levels in pomace are reduced to around 55%, while two-phase setups achieve similar efficiency depending on raw material quality.
This separation process not only reduces waste volume but also recovers residual oil trapped in the pomace, increasing total extraction yield by 10–20%. The precision of the system’s adjustable parameters — such as rotational speed and flow rate — allows operators to fine-tune separation quality for varying olive varieties and harvest conditions.
Yes — one of the major strengths of the Galaxy range is its compatibility with both two-phase and three-phase extraction systems. Each model is designed for modular integration into existing olive oil processing lines, whether used as a standalone pomace recovery unit or part of a fully automated continuous plant.
The standard outlet and power configuration (400 V / 50 Hz, 3F + T) ensures seamless connection to existing control systems, conveyors, or decanter outlets. For facilities handling multiple product streams or space limitations, Clemente also offers custom installation layouts, including elevated or in-line configurations.
The Galaxy 4 model further supports automation with electronic flow regulation and automatic drum washing, minimising downtime and improving overall system hygiene.
Routine care ensures long service life and consistent separation performance. Operators should:
Inspect and clean the drum and scraper assembly after each production shift.
Lubricate bearings and mechanical seals according to the manufacturer’s schedule.
Monitor for any imbalance or vibration, which may indicate uneven pomace loading or wear.
For Galaxy 4, ensure the automatic washing system and pneumatic scrapers are free from blockages and functioning correctly.
The stainless-steel body (AISI 304) resists corrosion, simplifying cleaning and reducing maintenance frequency. With proper servicing, the Galaxy range delivers many years of reliable operation even under continuous industrial workloads.
Key Features – Clemente Galaxy Series (2, 3 & 4) Olive Pomace Separators
The Clemente Galaxy Series represents a complete range of olive pomace separators designed to deliver efficient, reliable, and hygienic processing performance across small, medium, and large olive oil mills.
Each model—Galaxy 2, Galaxy 3, and Galaxy 4—is engineered to ensure maximum recovery, precision separation, and consistent throughput in both two-phase and three-phase olive oil extraction systems.
General Key Features
Wide Capacity Range:Processing capacities from 3 to 20 tons per hour, meeting the needs of artisanal mills through to industrial-scale operations.
Dual-Phase Compatibility: Adjustable for two-phase (80–90% moisture) or three-phase (≈55% moisture) pomace processing to adapt to varying mill configurations.
High Separation Efficiency: Maintains an efficiency rate of 10–20%, depending on olive quality and operational settings, ensuring minimal oil loss from pomace.
AISI 304 Stainless-Steel Construction: Built from food-grade AISI 304 stainless steel for superior hygiene, corrosion resistance, and long-term durability in demanding environments.
Compact & Modular Design: Each model features a space-efficient layout suitable for integration within existing extraction lines or as a standalone system.
Energy-Efficient Operation: Equipped with precision-balanced motors ranging from 24 kW to 58 kW, ensuring low vibration, stable performance, and reduced energy consumption.
Automated Cleaning Systems (Galaxy 4): The high-capacity Galaxy 4 includes an automatic washing system and pneumatic scraper to maintain continuous drum cleanliness and operational uptime.
Continuous Flow Management: Intelligent electrical control systems regulate pomace input for smooth flow and optimized separation, minimizing downtime and manual intervention.
Quiet, Low-Maintenance Function: Advanced mechanical balancing and sealed drive assemblies deliver quiet, vibration-free operation with minimal maintenance requirements.
Full System Compatibility: Compatible with all Clemente olive oil processing lines, including decanters, malaxers, crushers, and washers, offering seamless integration.
European Quality & Reliability: Manufactured to Clemente’s European engineering standards, ensuring consistent performance, mechanical precision, and long product lifespan.
