Prices are EX WORKS. Delivery is calculated separately based on freight and local handling.

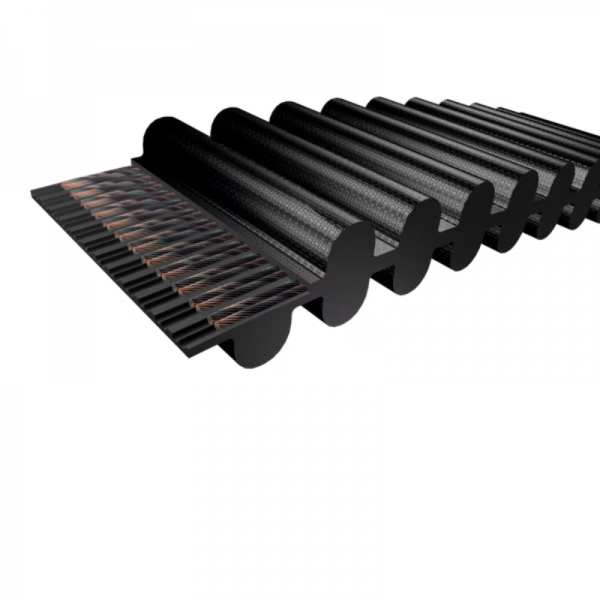

The HTD 1778-14M-40 is a high-performance, double-sided timing belt designed for complex industrial drives requiring power transmission from both sides of the belt. This "twin power" design features precision-engineered teeth on both surfaces that interlock perfectly with pulley grooves to ensure a constant speed ratio and synchronous operation with zero slippage.
Constructed from high-grade neoprene rubber, this belt offers superior resistance to oil, heat, and ozone, making it exceptionally durable in harsh industrial environments and tropical climates. The internal low-stretch glass fibre cords provide excellent dimensional stability, preventing elongation and ensuring a longer mean time between failures.
By providing an efficient method for transmitting power from prime movers to driven machines, this belt helps reduce overall energy consumption while maintaining high shear resistance during operation.
Technical Support: For assistance with pulley compatibility, tensioning specifications, or drive design, please contact our technical team via our Contact Page.
| Specification | Details |
|---|---|
| Pitch Length | 1778 mm |
| Tooth Pitch | 14 mm (14M) |
| Belt Width | 40 mm |
| Number of Teeth | 127 |
| Tooth Height | 14.8 mm |
| Thickness Between Teeth | 2.8 mm |
| Material | Neoprene Rubber with Glass Fibre Core |
| Product Net Weight | 0.94 kg |
