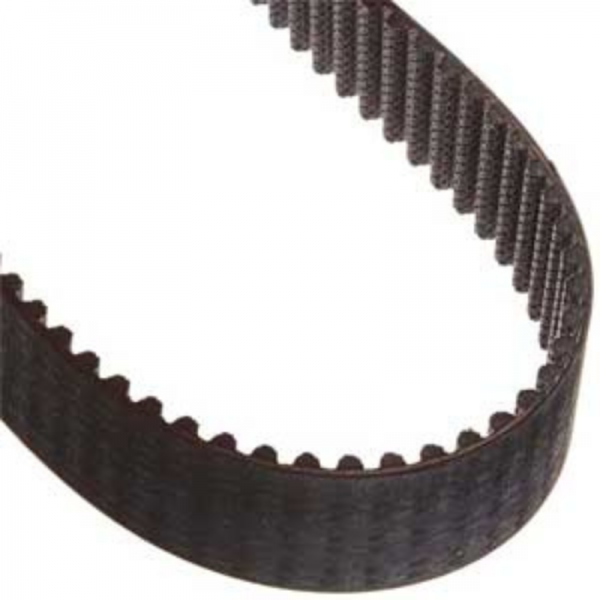

The HTD 1400-14M-40 is a high-performance synchronous timing belt engineered for heavy-duty industrial power transmission. Designed with a 14mm pitch, this belt is ideal for high-torque applications where precision and reliability are paramount. The curvilinear tooth profile ensures a constant speed ratio and prevents slippage, making it a highly efficient alternative to traditional chain drives.
This belt is constructed with a Neoprene rubber cushion that provides exceptional oil and heat resistance and high shear strength. Internally, low-stretch glass fibre cords guarantee excellent dimensional stability, ensuring the belt maintains its 1400mm pitch length even under significant mechanical stress. Its robust build makes it particularly suitable for tropical climates and harsh processing environments.
Technical Support: For assistance with pulley alignment or to verify compatibility with your high-torque drive system, please get in touch with our team via our Contact Page.
| Specification | Details |
|---|---|
| Pitch Length | 1400 mm |
| Tooth Pitch | 14 mm (14M) |
| Belt Width | 40 mm |
| Number of Teeth | 100 |
| Tooth Height | 10 mm |
| Tooth Depth | 6.1 mm |
| Material | Neoprene Rubber |
| Product Net Weight | 0.57 kg |
