Bearing 6314C3

Delivery is calculated separately
Bulk Discounts Prices
Quantity Price
1 $116.26
Quantity

PART.FSKFC30CU06314C3
  • Description
  • Features
  • Enquiry
  • Specifications
  • Knowledge

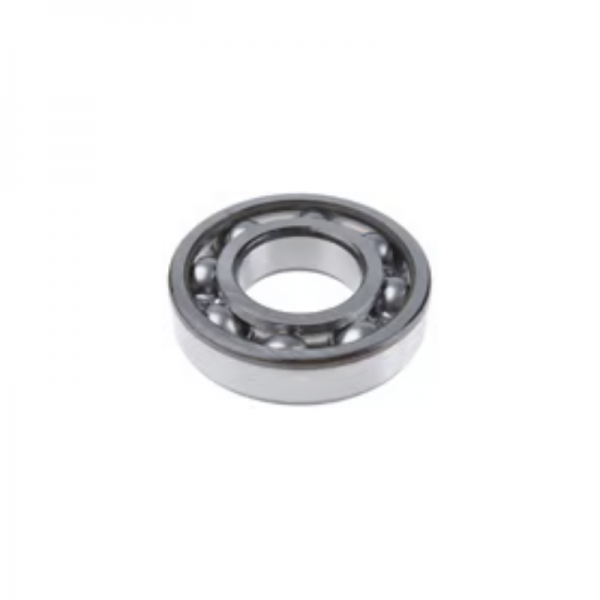

Bearing 6314 C3 - Single Row Deep Groove Ball Bearing (70mm ID)

Prices are EX WORKS. Delivery is calculated separately based on freight and local handling.

The 6314 C3 is a high-performance, single-row deep groove ball bearing designed for industrial applications requiring reliable rotation under both radial and axial loads. This "Open" type bearing allows for easy lubrication and is ideal for use in protected environments or oil-bath systems commonly found in agricultural and processing machinery.

Precision Engineering & Thermal Stability

This bearing is manufactured with a C3 radial internal clearance, which is greater than normal. This additional clearance is crucial for high-speed operations where thermal expansion of the bearing components or shaft is expected, preventing mechanical binding and ensuring a longer operational lifespan.

Featuring an Internal Diameter (ID) of 70mm, the 6314 C3 is built from premium-grade bearing steel with precision-ground raceways to minimise friction, heat generation, and noise during operation.

Technical Support: For assistance with lubrication specifications or verifying compatibility with your housing assembly, please contact our team via our Contact Page.

Technical Specifications

Specification Details
Model Number 6314 C3
Type Single Row Deep Groove Ball Bearing
Bore Diameter (ID) 70 mm
Internal Clearance C3 (Greater than Normal)
Design Open (No Seals or Shields)
Material High-Quality Bearing Steel
Main Features
  • Versatile Application: Ideal for electric motors, gearboxes, and large-scale agricultural machinery.
  • Long Service Life: Premium steel construction provides high fatigue resistance.
  • Simplified Maintenance: Open design facilitates quick inspection of the ball and cage assembly.
  • Standardised Sizing: Metric dimensions ensure compatibility as a drop-in replacement part.
  • :
  • :
  • :
  • :

Troubleshoot Bearing Temperatures - Decanter Maintenance

A simple rule for troubleshooting bearing temperatures: No more than 180°F (82°C) on the housing. The bearing outer ring can be up to 20°F (11°C) hotter than the housing.
Please log in to view the entire article

Trouble Shooting Bearing Temperatures

Preventative Maintenance

A simple rule for troubleshooting bearing temperatures: No more than 180°F (82°C) on the housing. The bearing outer ring can be up to 20°F (11°C) hotter than the housing. The lubricant originally specified for the application was likely selected to run at lower temperatures. A temperature increase of 50°F (28°C) may cause oil viscosity to drop by 50% or more. This could be the "tipping point" for the application, causing it to go from a hot (but stable) condition, to a hotter, unstable condition where thermal runaway occurs. Eventually, it doesn't matter how much lubricant you add to the application: the oil film is too thin inside the bearing to prevent metal-to-metal contact. Friction and heat build up, which could lead to catastrophic machinery seizure.

A better procedure for "hot" bearings would be:
  1. Check the housing surface temperature. It might be OK, even though most people find anything over 130°F (55°C) too hot to touch.
  2. Slowly add the proper amount of fresh grease to the application (use SKF Dialset). If it's a motor or other machine with a grease relief, open the relief and allow excess grease to escape.
  3. Monitor the temperature and make sure it doesn't run away. (You'll often get a temperature spike after adding grease as the bearing ejects the excess into the housing. This might take 30 minutes to several hours to stabilize, depending on the size of the machine.)
  4. If the temperature keeps going up, call for help - you will probably have to shut down and investigate.

Catastrophic failures can have untold consequences. Contact SKF or The Olive Centre, we can help you with temperature issues in bearings. A simple call could save you time, money and perhaps someone's life.
