Bearing 6312 C3

Delivery is calculated separately
Bulk Discounts Prices
Quantity Price
1 $55.91
Quantity

PART.FSKFC30CU06312C3
  • Description
  • Features
  • Enquiry
  • Specifications
  • Knowledge

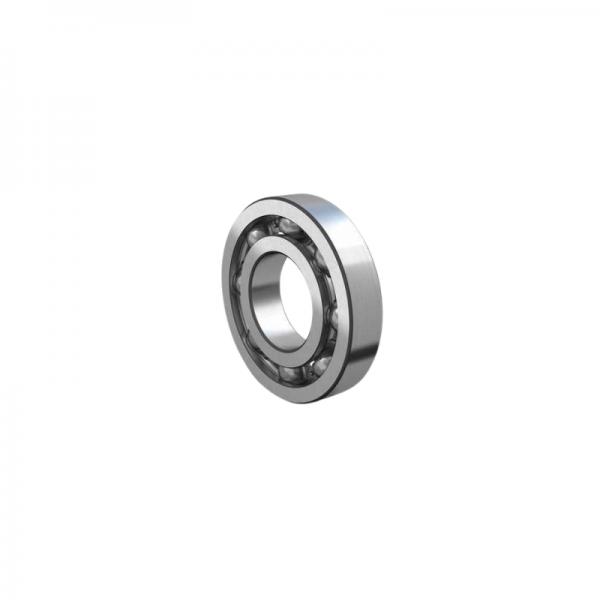

Bearing 6312 C3 - Deep Groove Ball Bearing (60x130x31mm)

Prices are EX WORKS. Delivery is calculated separately based on freight and handling requirements.

The 6312 C3 is a high-performance, single-row deep groove ball bearing designed to accommodate heavy radial and axial loads in both directions. This industrial-grade component is engineered for reliability, featuring a high-speed capability and low frictional torque, making it ideal for the demanding conditions of agricultural and milling machinery.

Precision Engineering & Thermal Tolerance

This bearing is manufactured with a C3 radial internal clearance, providing greater internal space than standard classes. This feature is critical for applications where high speeds or significant temperature fluctuations occur, as it allows for thermal expansion without compromising the mechanical integrity of the rotation.

The 6312 C3 features precision-ground raceways and high-quality bearing steel construction. Its robust design includes optimised shoulder and recess diameters to ensure a secure fit and efficient load distribution across the assembly.

Technical Support: For assistance with fitting tolerances or housing compatibility, please reach out to our team via our Contact Page.

Technical Specifications

Specification Dimensions
Bore Diameter (d) 60 mm
Outside Diameter (D) 130 mm
Width (B) 31 mm
Main Features
  • High-Speed Stability: Capable of maintaining performance under high rotational speeds common in mill drives.
  • Hygienic Steel Build: Manufactured from premium bearing steel for longevity in harsh processing environments.
  • Reduced Friction: Ground raceway grooves ensure minimal heat generation and smooth operation.
  • Maintenance Ready: Standard metric dimensions make this an ideal replacement part for Australian industrial machinery.
  • :
  • :
  • :
  • :

Troubleshoot Bearing Temperatures - Decanter Maintenance

A simple rule for troubleshooting bearing temperatures: No more than 180°F (82°C) on the housing. The bearing outer ring can be up to 20°F (11°C) hotter than the housing.
Please log in to view the entire article

Trouble Shooting Bearing Temperatures

Preventative Maintenance

A simple rule for troubleshooting bearing temperatures: No more than 180°F (82°C) on the housing. The bearing outer ring can be up to 20°F (11°C) hotter than the housing. The lubricant originally specified for the application was likely selected to run at lower temperatures. A temperature increase of 50°F (28°C) may cause oil viscosity to drop by 50% or more. This could be the "tipping point" for the application, causing it to go from a hot (but stable) condition, to a hotter, unstable condition where thermal runaway occurs. Eventually, it doesn't matter how much lubricant you add to the application: the oil film is too thin inside the bearing to prevent metal-to-metal contact. Friction and heat build up, which could lead to catastrophic machinery seizure.

A better procedure for "hot" bearings would be:
  1. Check the housing surface temperature. It might be OK, even though most people find anything over 130°F (55°C) too hot to touch.
  2. Slowly add the proper amount of fresh grease to the application (use SKF Dialset). If it's a motor or other machine with a grease relief, open the relief and allow excess grease to escape.
  3. Monitor the temperature and make sure it doesn't run away. (You'll often get a temperature spike after adding grease as the bearing ejects the excess into the housing. This might take 30 minutes to several hours to stabilize, depending on the size of the machine.)
  4. If the temperature keeps going up, call for help - you will probably have to shut down and investigate.

Catastrophic failures can have untold consequences. Contact SKF or The Olive Centre, we can help you with temperature issues in bearings. A simple call could save you time, money and perhaps someone's life.

Why the type of bearing is fitted is important to the application?
