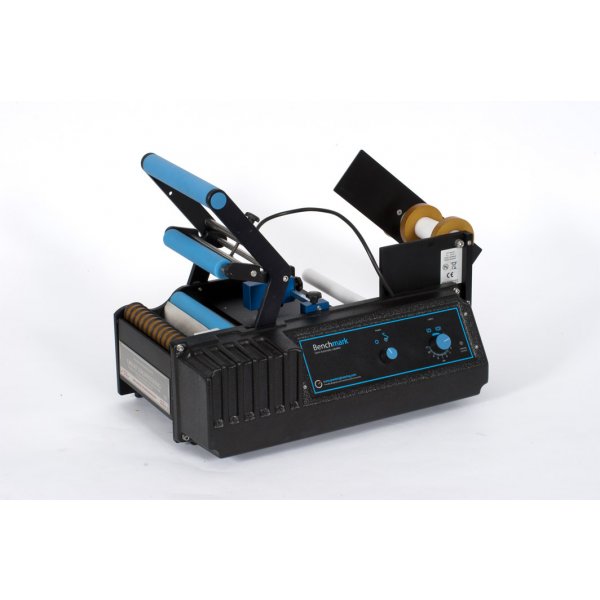

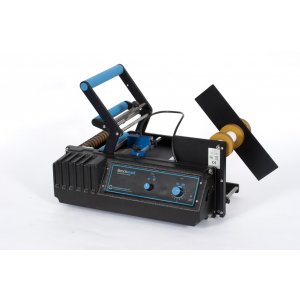

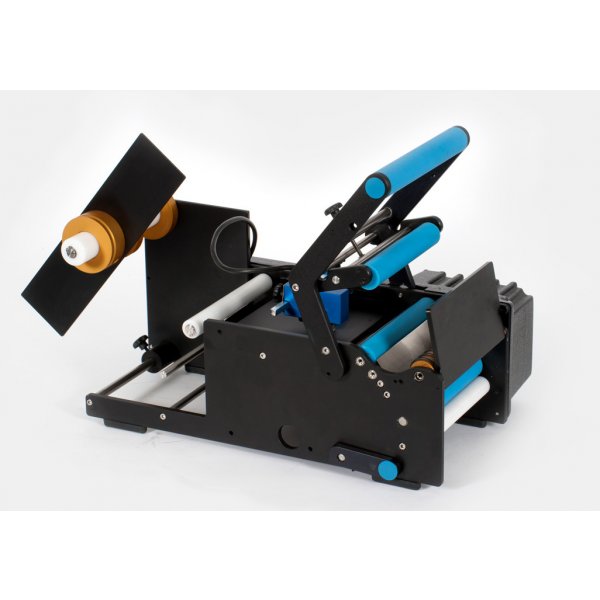

BenchMARK Semi-Auto Labelling

Designed for artisan olive oil, vinegar, and small-batch jar producers, the BenchMARK Semi-Automatic Label Applicator delivers precise, consistent label placement without industrial infrastructure.

• Applies single, front & back, or full wrap-around labels in one smooth manual motion with minimal training.
• Accommodates round containers ranging from 50mm to 110mm diameter, with an optional small-bottle adapter (10mm minimum).
• Supports pressure-sensitive, die-cut, roll-fed or fan-folded labels in opaque, clear, or translucent formats.
• Label sizes supported: height from 10mm to 230mm, length ≥25mm, thickness ≥ 0.02mm.
• Intelligent edge-detection sensor ensures label alignment precision without printed registration marks.
• Constructed of anodized 6061 aluminum and food‑grade stainless steel components for durability and easy sanitation.

Product Benefits at a Glance

Why the BenchMARK Labelling Applicator is ideal for precision labelling of olive oil and jar products:

• Ultra-precise label placement - Consistently accurate front, wrap, or front‑and‑back placement with millimetre-perfect positioning via an optical edge sensor; no registration marks required.
• Fast, single‑operator throughput - Apply up to 1,100 –1,200 bottles or jars per hour with hand‑powered accuracy and ergonomics.
• Supports real‑time, in‑house label printing - Seamlessly connects to standard desktop or thermal printers so you can produce and apply variable labels on demand- no minimum print orders needed.
• Expands as your business grows - Easily upgrade to BenchDELUXE (automatic/foot pedal) or BenchMAX (orientation sensor and small bottle adaptor) using the same base frame.
• Built to last - Machined from anodized aluminium and food‑grade stainless steel; assembled in Australia; backed by a 5 year nationwide parts and frame warranty.
• Compact & user‑friendly - Bench‑top setup (no compressed air or utilities required) that’s typically ready to label within 10 minutes of unboxing, with minimal operator training

Technical Specifications

• Machine type: Semi‑automatic bench‑top label applicator (manual operator insertion)
• Net weight: 33kg
• Footprint (L×W×H): 61cm × 59cm × 44cm
• Construction materials: Anodized 6061 aluminium frame with food‑grade stainless steel shafts and bolts
• Container compatibility: Round bottles and jars between 50mm and 110mm in diameter (standard setup)
• Supported label formats: Single, front‑and‑back, or full wrap‑around; pressure‑sensitive (self‑adhesive), die‑cut, roll‑fed or fan‑folded; opaque, translucent or clear substrates
• • **Label dimension range**:
  • • Thickness: minimum 0.02mm
  • • Length: minimum 25mm
  • • Height: 10mm  to 230mm
• Label roll capacity: Outer diameter up to 300mm; core size between 38 mm and 76 mm
• Sensor system: Optical on‑edge detection-no printed registration mark needed, even with clear labels
• Typical throughput: Around 1,040 containers per hour when operated by a single person

Setup & Support

• Delivered completely assembled and ready to use - typically up and labeling in under 10 minutes.
• Bottle guide spacing and label module adjustments can be made easily without tools.
• Compatible with most desktop and thermal label printers, enabling on-demand custom labels (e.g. harvest dates, batch numbering, seasonal branding).
• Maintenance-friendly design: simple component removal and cleaning; sensor calibration and troubleshooting videos available.

OPTIONALS
BenchMARK™ Upgrade Options:

Here are the modular upgrades available for the BenchMARK Semi‑Automatic Label Applicator, designed to let you start simple and expand as needed - without replacing the base machine itself:

• Automatic Attachment (BenchDELUXE Upgrade) - Add a motorised feed and foot pedal to upgrade to the BenchDELUXE - enabling hands‑free labelling and speeds up to ~1,500 bottles/jars per hour while retaining manual activation if needed.
• Orientation Sensor + Mount (BenchMAX Upgrade) - The “Label Orientator” detects notches, i‑marks, or label panels for ultra‑consistent placement, transforming your BenchDELUXE or BenchMARK into the precision-grade BenchMAX
• Small Container Adapter - Allows labelling of mini jars, vials or sample bottles down to approximately 8 mm in diameter - as compact as ink vials or botanical extract bottles.
• Extended / Removable Handle Kit - Increases container capacity up to ~250 mm diameter when larger bottles or olive oil jugs need full rotation; the handle can be removed for regular bottles to save space.
• Print & Apply Interface Kit - Seamlessly pairs with any desktop or thermal colour printer-perfect for printing batch codes, stickers, QR codes or promotional designs in real time during labelling.
• Wide body option

Delivery charges apply.


How It Works
Mount and Thread the Label Roll (Load Once per Roll)

• Place a roll (up to 300mm diameter; 38–76mm core) on the unwind shaft and secure the tension roller underneath.
• Feed the label liner: over the tension roller, beneath the drive assembly, then across the sharp peel‑edge.
• The label peels away from the liner at this edge, ready for dispensing.

Set Container and Label Spacing

• Use the adjustable guide rails to centre the bottle or jar between the rollers.
• Dial in spacing for front/back label layouts - ensures consistent label placement even when rotating bottles.

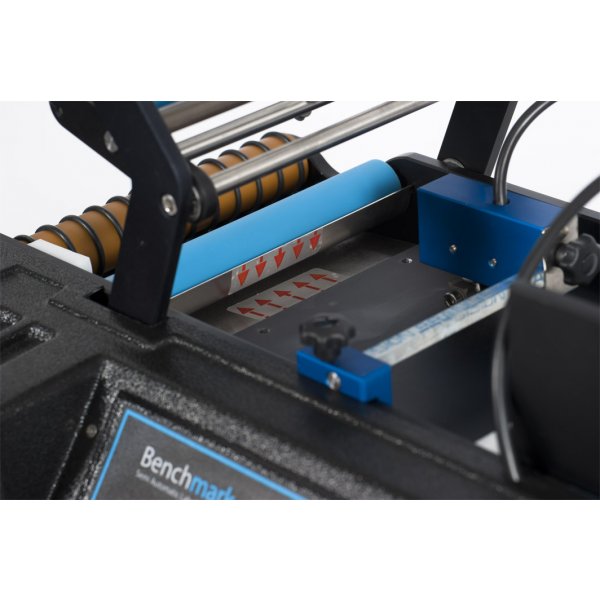

Adjust the Edge Sensor

• Position the optical sensor so it detects the container’s edge (not the label) at the correct moment.
• This triggers label dispensing consistently across varying container heights or surface finishes.

Apply the Label

• Pull down the lever handle - this pulls the bottle against the feed rollers and starts rotation.
• When the sensor detects the bottle’s leading edge, one label is precisely ejected onto the peel‑plate.
• Bottle continues to rotate under a clean-down roller, applying the label smoothly and evenly.

Release and Reload

• Once the label is applied, release the handle. Slide the labeled bottle out and insert the next one.
• No re‑threading or realignment required between cycles.

Repeat with High Speed

• A single operator can apply approximately 20 bottles or jars per minute, reaching up to 1,100–1,200 containers per hour with consistent results.
