Normecanica olive transfer pump DTM-100 E

Quantity

MAGMOPM.pumpDTM100E
  • Description
  • Enquiry

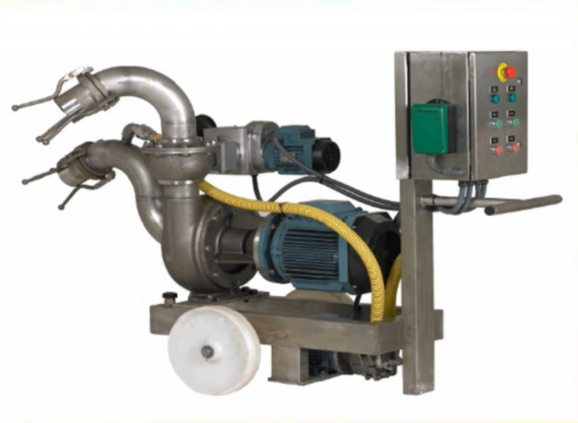

Normecanica olive transfer pump DTM-100 E
Capacity 60 cubic metres per hour

Working by auto-aspiration and with following elements:
  • Centrifugal Pump type DTM-100, assembly monoblock with impeller of wide solid pass, in
  • AISI-316 all parts in contact with the liquid to pump, with engine of 10 CV.
  • Vacuum pump of liquid ring to make the self-priming, type BVE1, with engine of 5,5 CV
  • Feeding system of liquid ring, composed by tank in inox. ,hoses and different valves.
  • Ball valve of 100 mm, in AISI-316 with electric servomotor for opening and close, placed in the drive of the centrifugal pump
  • Pipe inox. leaned to aspiration and drive provided with rapid links of hose.
  • Complete electric unit, with remote control and frequency changer at 380 V.
All assembled in stainless steel trolley.

Made in Spain.

DTM100E Profile

Let us know how you need your pump mounted?
